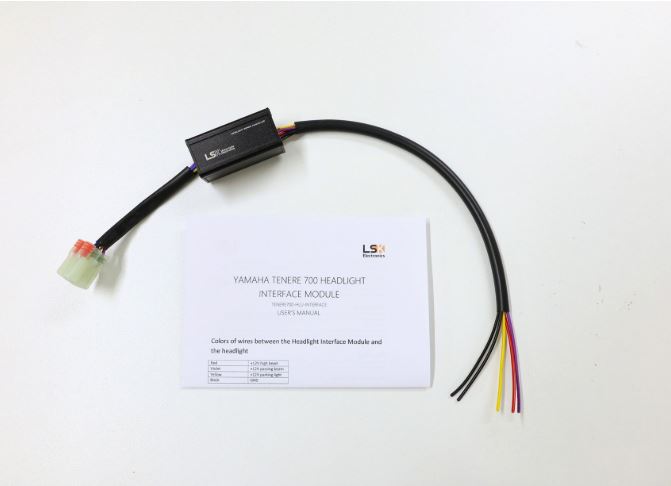

Yamaha Tenere 700 Headlight Interface Module

Prevent The expensive blowup of your headlight ECU

How does it work

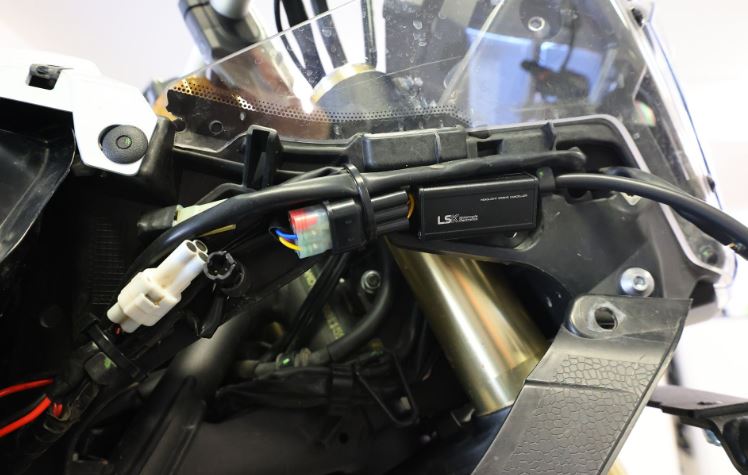

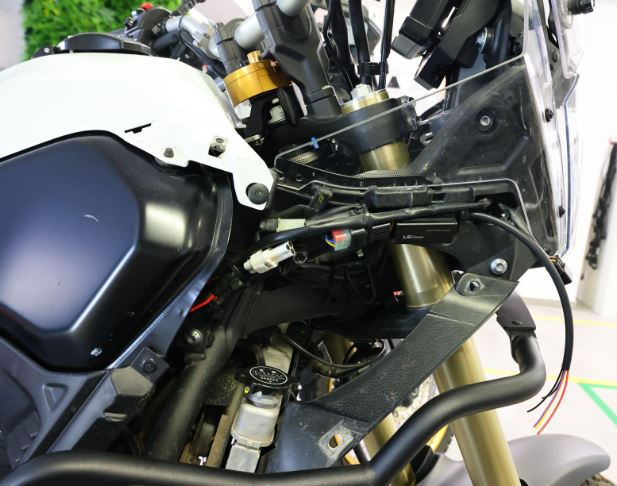

The Yamaha Tenere 700 Headlight Interface Module is a device that allows you to replace the original headlight with an aftermarket one using the bike's original headlight socket. It utilizes the same signals, ensuring that the motorcycle cannot distinguish between the original headlight and the aftermarket one connected through this device. This interface Module fits directly into the original Tenere 700 headlight socket, eliminating the need for any modifications to the motorcycle's wiring harness.

Works perfectly on all Tenere 700 models including 2025.

• There are two versions of headlight connector:
• 6 pin - all black&white dashboard models / 2025 models (BAG9 model code)
• 4 pin - color dashboard models except 2025

Functions

Device provides power outputs for low beam, high beam and the parking lamp.

Max allowed current draws from outputs are following:

• 8 A (ca 105 W) on low beam wire
• 8 A (ca 105 W) on high beam wire
• 3 A (ca 40W) on parking light wire

For higher currents it is required to use the relay and draw the power directly from the battery.

Fits;

• Colour dashboard models except 2025 (4-pin headlight connector)
• Black & white dashboard models or 2025 models (6-pin headlight connector)
