Perun Moto - Subframe Reinforcement Top (bolts only) KTM690/ Husky 701/GasGas 700

Fits:

• KTM690 Enduro & SMC 2014+ including 2019-2024
• Husqvarna 701 enduro & SMC all models

Upper assembly:

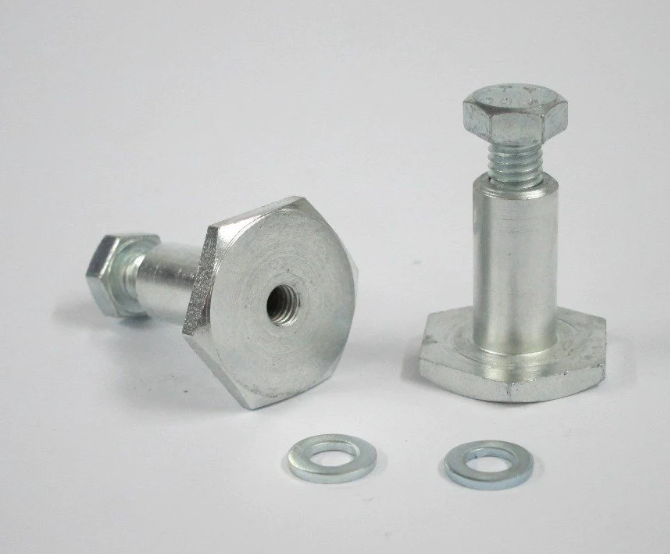

• Upper bolt caps(qty. 2) are made of AISI 4140 steel, heat treated (for added strength) then zinc coated (rust protection). That makes them virtually indestructible. Size of the head is standard – 27 mm, same as front axle nut. There is M6 threaded hole for OEM bolt holding plastic fairing. Bolt cap is designed to be slim so plastic fairing is not sticking out more then it does when OEM upper bolt is used.
• Upper bolts (qty. 2 + optional 2) are 12.9 machine bolts, zinc coated. These are much stronger then OEM upper tank bolts. 25 mm long, so 15 mm is threaded into the bolt cap, when properly torqued. NOTE: in kits for 2014-on bikes additional button head bolts are provided - those are for Husqvarna 701 bikes.

Original tank bolt issues explained

Subframe reinforcement kit, for 2019+ KTM 690 Enduro and GasGas ES/SM 700 - Installation Instructions

Subframe reinforcement kit, for 2008-2018 KTM 690 Enduro and Husqvarna 701 Enduro all  Installation Instructions
