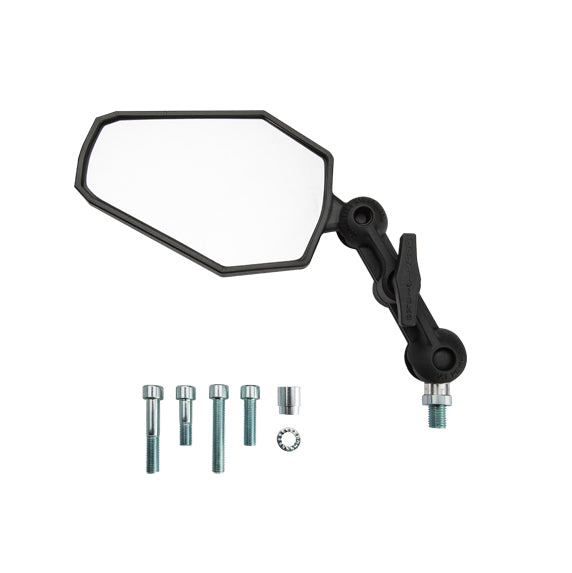

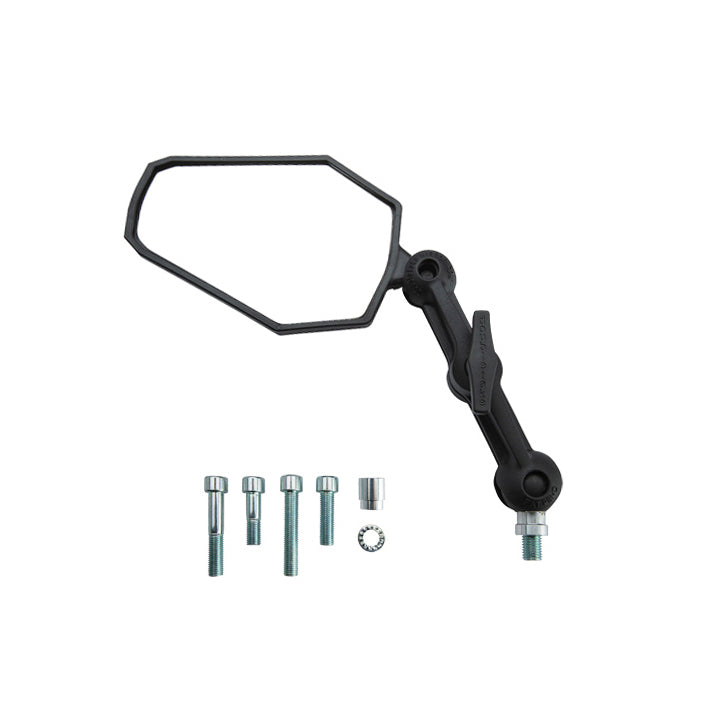

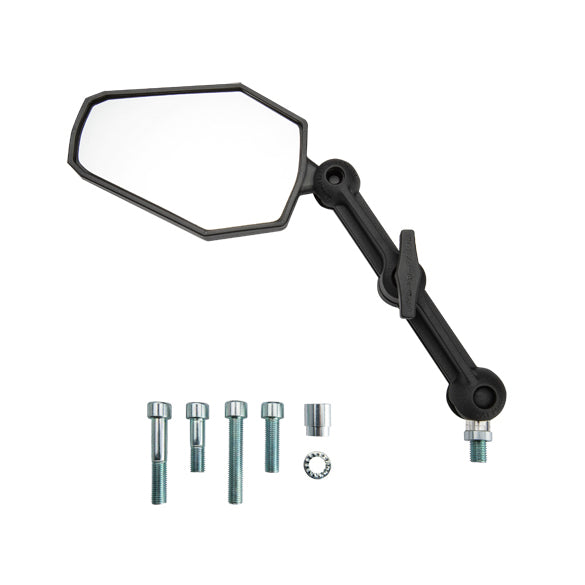

Double Take Adventure Mirror kits

Kit includes:

Double Take Adventure Mirror head

• Almost Indestructible- Made from reinforced Zytel
• Excellent visibility- SAE spec convex lens
• Easy to fold, remove, or swap between bikes
• Housing guaranteed against breakage
• Mirror Dimensions = 135mm x 90mm (5.25" x 3.5")
• Overall length = 175mm (7")
• Made in the USA
• Recommended for applications where mirror will be extended most of the time, although it still folds very well

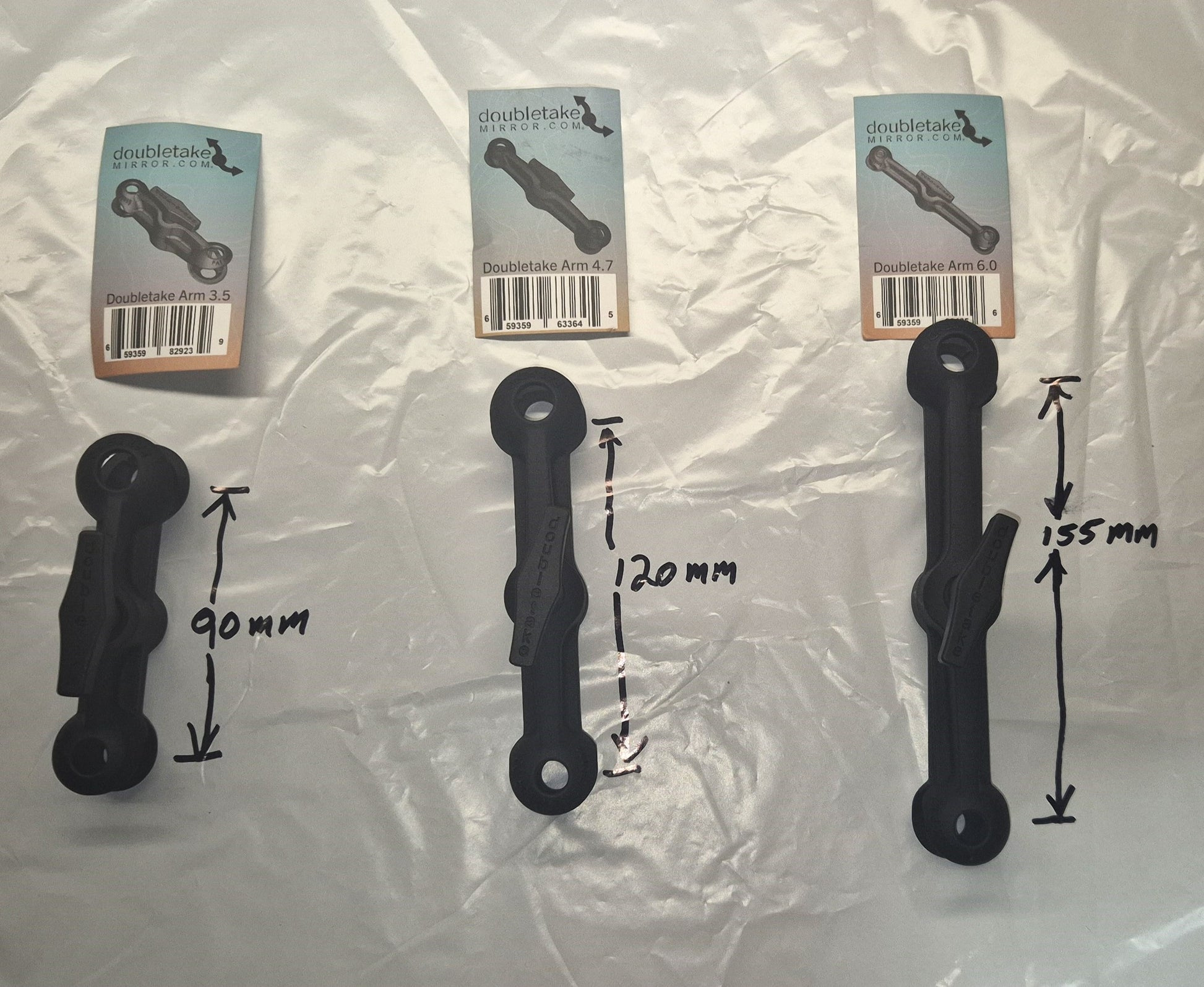

6"/155mm double take Arm

New Double take 6" mount arm

suits;

• New Double take ball mount 1.25" ball mounts and 1" ball mount mirror heads.
• will not work with old 1" ball mounts
• Arm has 2 different sized clamp ends 1" one end and 1.25' the other
• lighter and stronger for less movement when riding

4.7"/120mm double take Arm

New Double take 6" mount arm

suits;

• New Double take ball mount 1.25" ball mounts and 1" ball mount mirror heads.
• will not work with old 1" ball mounts
• Arm has 2 different sized clamp ends 1" one end and 1.25' the other
• lighter and stronger for less movement when riding.

3.5"/90MM Ram Arm

New Double take 3.5" mount arm

suits;

• New Double take ball mount 1.25" ball mounts and 1" ball mount mirror heads.
• will not work with old 1" ball mounts
• Arm has 2 different sized clamp ends 1" one end and 1.25' the other
• lighter and stronger for less movement when riding
•

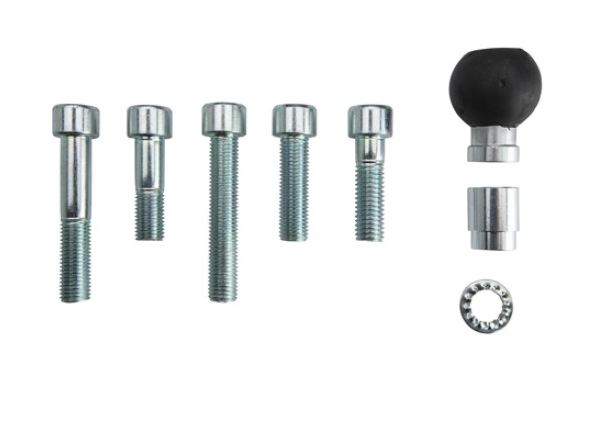

1.25" Ball Mount KIT Includes

• 1 x 1.125" Ball Stud,
• 1 x 10mm x 1.25 bolt long
• 1 x 10mm x 1.25 bolt short
• 1 x Reverse Thread Bolt 10mm x 1.25
• 1 x 10mm x 1.5 short bolt,
• 1 x lock washer.

suits all KTM, BMW, Yamaha, Husqvarna, Honda, Suzuki

• Weight ball only: 20 grams
• Weight ball kit: 110 grams
• Materials: Billet Aluminium, Nitrile, hardened Steel
• Diameter: 1.125” (29mm)
• Height: 1.37" (35mm)
• Extension: 0.78" (20mm)

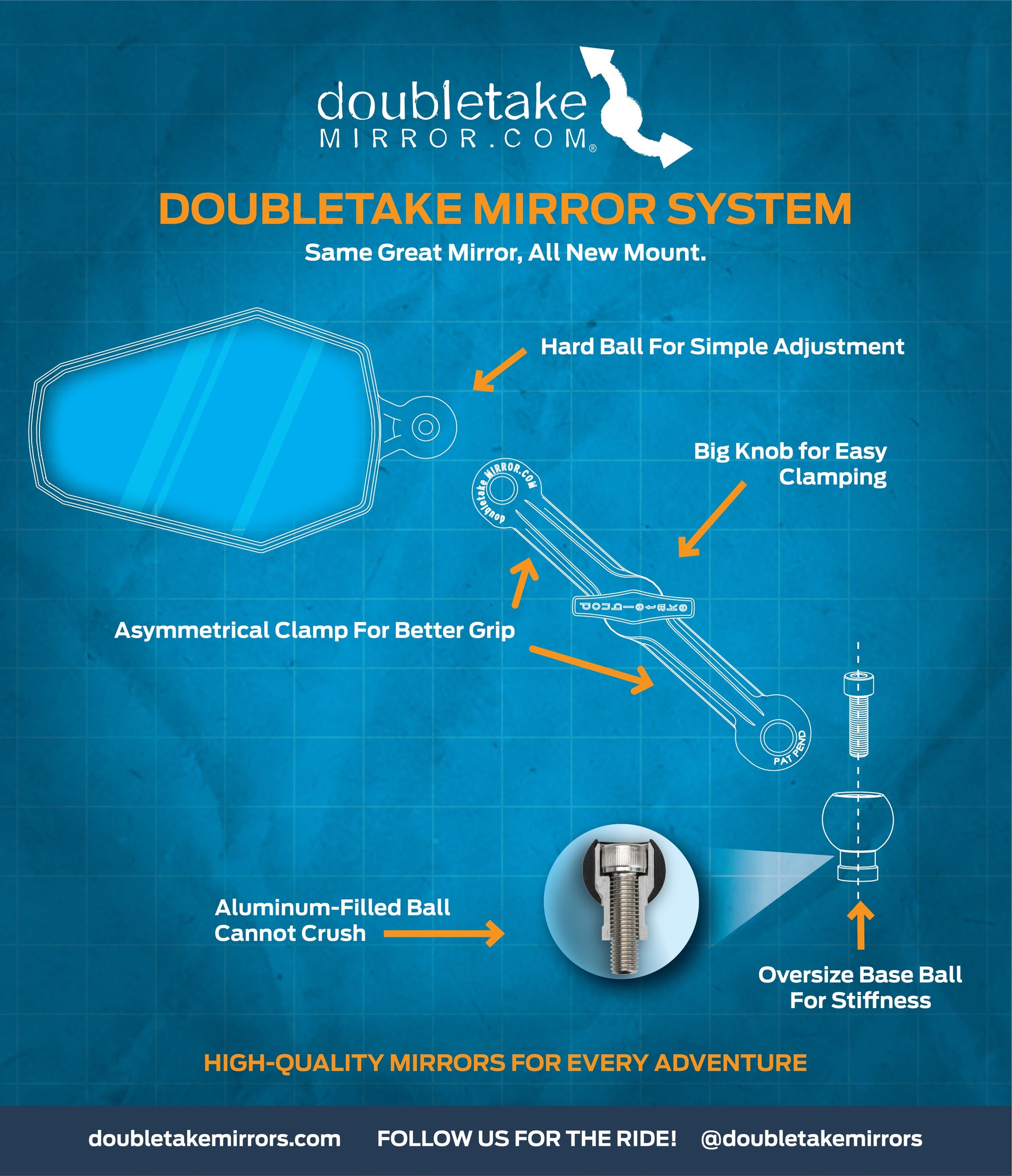

Universal Fit. Every ball kit includes 4 bolts to allow fitment to any bike and eliminate unsightly adapters.

Larger size. Our ball is 1.125”, and even that small increase in diameter makes a big difference in rigidity. This means you don’t have to overtighten the arm to keep it from moving while riding.

Won't Crush. Our aluminium-filled base ball, coated with high-quality nitrile rubber won’t degrade under extended compression. You won’t have to repeatedly adjust your mirrors, because both ends of the system are designed to last.

Won't spin. We include a lock washer that secures the ball in relation to the bike.
